自连接和有状态突触
本教程作者: fangwei123456
自连接模块

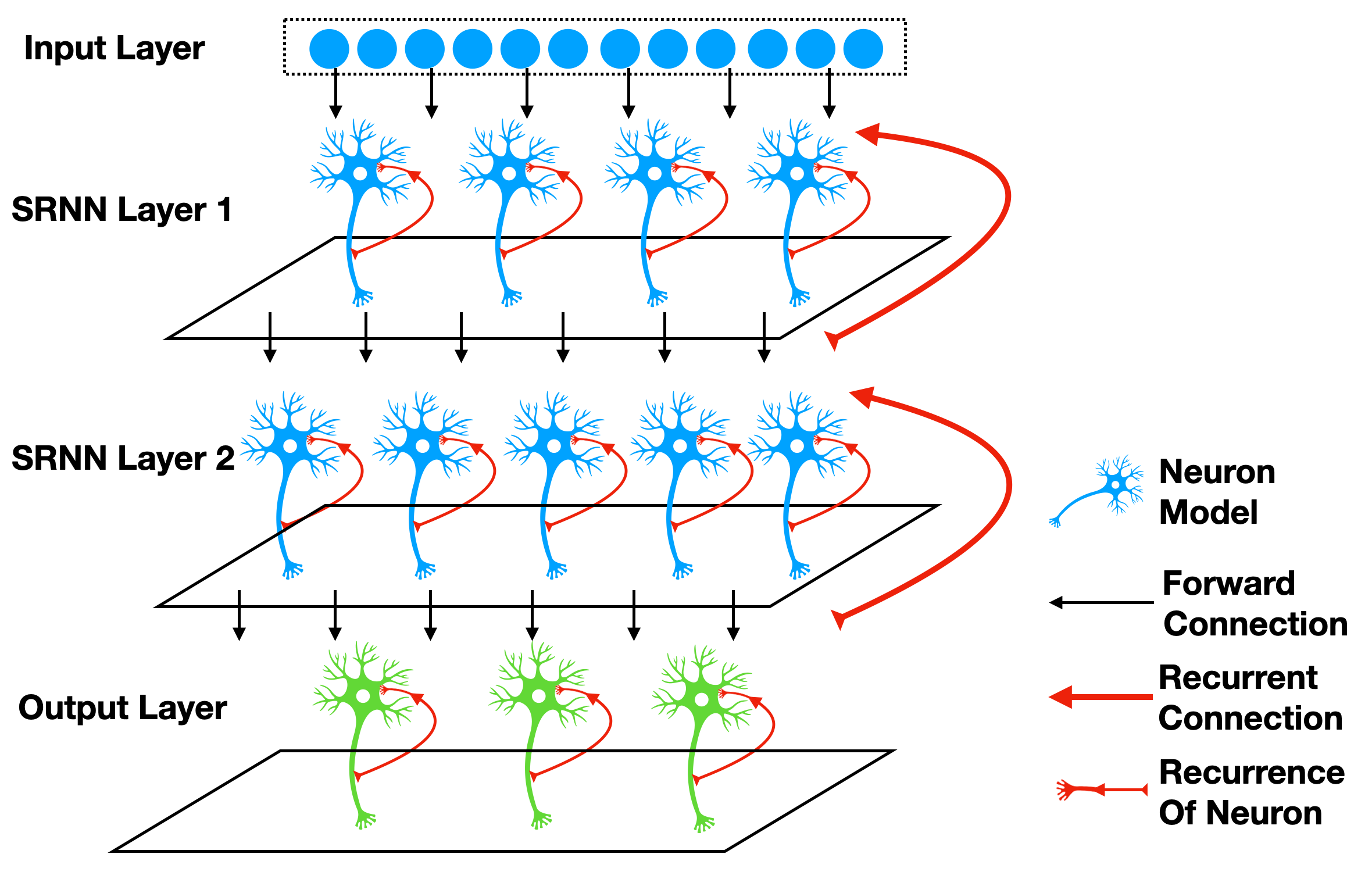

自连接指的是从输出到输入的连接,例如 1 一文中的SRNN(recurrent networks of spiking neurons),如下图所示:
使用惊蜇框架很容易构建出带有自连接的模块。考虑最简单的一种情况,我们给神经元增加一个回路,使得它在 \(t\) 时刻的输出 \(s[t]\),会与下一个时刻的外界
输入 \(x[t+1]\) 相加,共同作为输入。这可以由 spikingjelly.clock_driven.layer.ElementWiseRecurrentContainer
轻松实现。
ElementWiseRecurrentContainer
是一个包装器,给任意的 sub_module
增加一个额外的自连接。连接的形式可以使用用户自定义的逐元素函数
操作 \(z=f(x, y)\) 来实现。记 \(x[t]\) 为 \(t\) 时刻整个模块的输入,\(i[t]\) 和 \(y[t]\) 是 sub_module
的
输入和输出(注意 \(y[t]\) 同时也是整个模块的输出),则
其中 \(f\) 是用户自定义的逐元素操作。默认 \(y[-1] = 0\)。
现在让我们用 ElementWiseRecurrentContainer
来包装一个IF神经元,逐元素操作设置为加法,因而
我们使用软重置,且给与 \(x[t]=[1.5, 0, ..., 0]\) 的输入:
T = 8
def element_wise_add(x, y):
return x + y
net = ElementWiseRecurrentContainer(neuron.IFNode(v_reset=None), element_wise_add)
print(net)
x = torch.zeros([T])
x[0] = 1.5
for t in range(T):
print(t, f'x[t]={x[t]}, s[t]={net(x[t])}')
functional.reset_net(net)
输出为:
ElementWiseRecurrentContainer(
element-wise function=<function element_wise_add at 0x000001FE0F7968B0>
(sub_module): IFNode(
v_threshold=1.0, v_reset=None, detach_reset=False
(surrogate_function): Sigmoid(alpha=1.0, spiking=True)
)
)
0 x[t]=1.5, s[t]=1.0
1 x[t]=0.0, s[t]=1.0
2 x[t]=0.0, s[t]=1.0
3 x[t]=0.0, s[t]=1.0
4 x[t]=0.0, s[t]=1.0
5 x[t]=0.0, s[t]=1.0
6 x[t]=0.0, s[t]=1.0
7 x[t]=0.0, s[t]=1.0
可以发现,由于存在自连接,即便 \(t \ge 1\) 时 \(x[t]=0\),由于输出的脉冲能传回到输入,神经元也能持续释放脉冲。
可以使用 spikingjelly.clock_driven.layer.LinearRecurrentContainer
实现更复杂的全连接形式的自连接。
有状态的突触
2 3 等文章使用有状态的突触。将 spikingjelly.clock_driven.layer.SynapseFilter
放在普通无状
态突触的后面,对突触输出的电流进行滤波,就可以得到有状态的突触,例如:
stateful_conv = nn.Sequential(
nn.Conv2d(3, 16, kernel_size=3, padding=1, stride=1),
SynapseFilter(tau=100, learnable=True)
)
Sequential FashionMNIST上的对比实验
接下来让我们在Sequential FashionMNIST上做一个简单的实验,验证自连接和有状态突触是否有助于改善网络的记忆能力。Sequential FashionMNIST指的是 将原始的FashionMNIST图片一行一行或者一列一列,而不是整个图片,作为输入。在这种情况下,网络必须具有一定的记忆能力,才能做出正确的分类。我们将会把 图片一列一列的输入,这样对网络而言,就像是从左到右“阅读”一样,如下图所示:
下图中展示了被读入的列:
首先导入相关的包:
import torch
import torch.nn as nn
import torch.nn.functional as F
import torchvision.datasets
from spikingjelly.clock_driven.model import train_classify
from spikingjelly.clock_driven import neuron, surrogate, layer
from spikingjelly.clock_driven.functional import seq_to_ann_forward
from torchvision import transforms
import os, argparse
try:
import cupy
backend = 'cupy'
except ImportError:
backend = 'torch'
我们定义一个普通的前馈网络 Net
:
class Net(nn.Module):
def __init__(self):
super().__init__()
self.fc1 = nn.Linear(28, 32)
self.sn1 = neuron.MultiStepIFNode(surrogate_function=surrogate.ATan(), detach_reset=True, backend=backend)
self.fc2 = nn.Linear(32, 10)
self.sn2 = neuron.MultiStepIFNode(surrogate_function=surrogate.ATan(), detach_reset=True, backend=backend)
def forward(self, x: torch.Tensor):
# x.shape = [N, C, H, W]
x.squeeze_(1) # [N, H, W]
x = x.permute(2, 0, 1) # [W, N, H]
x = seq_to_ann_forward(x, self.fc1)
x = self.sn1(x)
x = seq_to_ann_forward(x, self.fc2)
x = self.sn2(x)
return x.mean(0)
我们在 Net
的第一层脉冲神经元后增加一个 spikingjelly.clock_driven.layer.SynapseFilter
,得到一个新的网络 StatefulSynapseNet
:
class StatefulSynapseNet(nn.Module):
def __init__(self):
super().__init__()
self.fc1 = nn.Linear(28, 32)
self.sn1 = neuron.MultiStepIFNode(surrogate_function=surrogate.ATan(), detach_reset=True, backend=backend)
self.sy1 = layer.MultiStepContainer(layer.SynapseFilter(tau=2., learnable=True))
self.fc2 = nn.Linear(32, 10)
self.sn2 = neuron.MultiStepIFNode(surrogate_function=surrogate.ATan(), detach_reset=True, backend=backend)
def forward(self, x: torch.Tensor):
# x.shape = [N, C, H, W]
x.squeeze_(1) # [N, H, W]
x = x.permute(2, 0, 1) # [W, N, H]
x = self.fc1(x)
x = self.sn1(x)
x = self.sy1(x)
x = self.fc2(x)
x = self.sn2(x)
return x.mean(0)
我们给 Net
的第一层脉冲神经元增加一个反馈连接 spikingjelly.clock_driven.layer.LinearRecurrentContainer
得到 FeedBackNet
:
class FeedBackNet(nn.Module):
def __init__(self):
super().__init__()
self.fc1 = nn.Linear(28, 32)
self.sn1 = layer.MultiStepContainer(
layer.LinearRecurrentContainer(
neuron.IFNode(surrogate_function=surrogate.ATan(), detach_reset=True),
32, 32
)
)
self.fc2 = nn.Linear(32, 10)
self.sn2 = neuron.MultiStepIFNode(surrogate_function=surrogate.ATan(), detach_reset=True, backend=backend)
def forward(self, x: torch.Tensor):
# x.shape = [N, C, H, W]
x.squeeze_(1) # [N, H, W]
x = x.permute(2, 0, 1) # [W, N, H]
x = seq_to_ann_forward(x, self.fc1)
x = self.sn1(x)
x = seq_to_ann_forward(x, self.fc2)
x = self.sn2(x)
return x.mean(0)

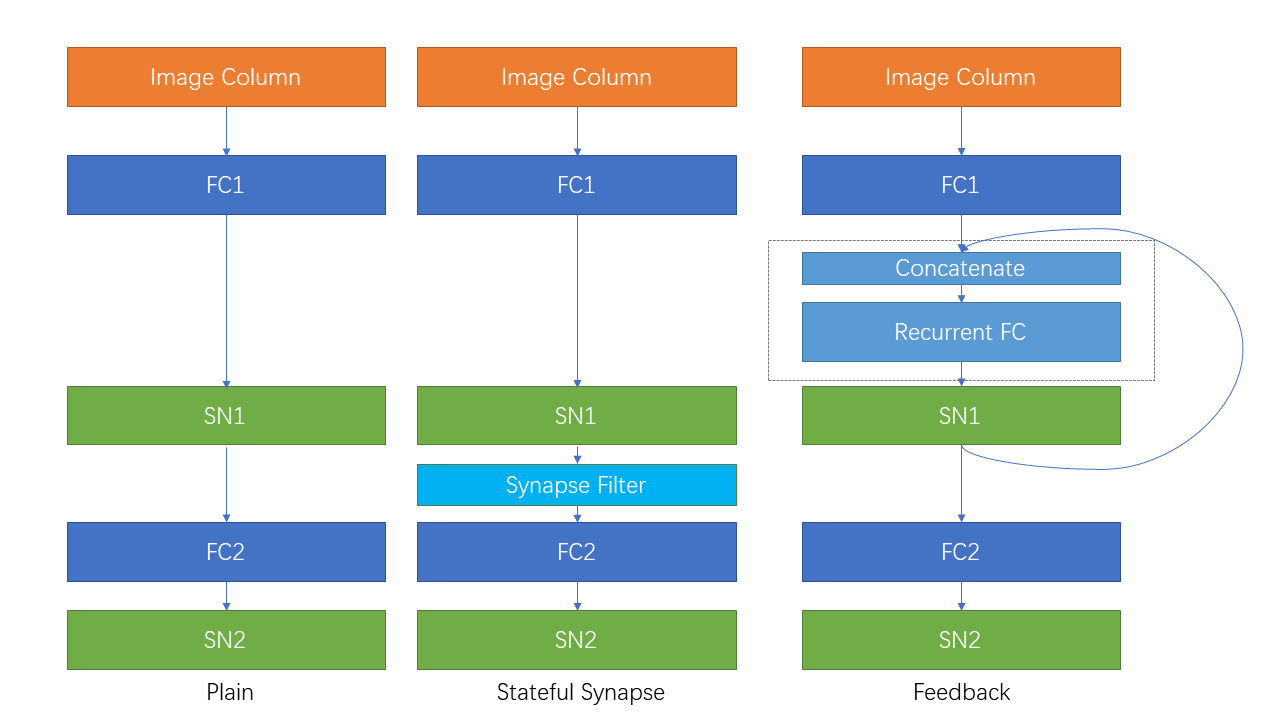

下图展示了3种网络的结构:
完整的代码位于 spikingjelly.clock_driven.examples.rsnn_sequential_fmnist。我们可以通过命令行直接运行。运行参数为:
(pytorch-env) PS C:/Users/fw> python -m spikingjelly.clock_driven.examples.rsnn_sequential_fmnist --h
usage: rsnn_sequential_fmnist.py [-h] [--data-path DATA_PATH] [--device DEVICE] [-b BATCH_SIZE] [--epochs N] [-j N]
[--lr LR] [--opt OPT] [--lrs LRS] [--step-size STEP_SIZE] [--step-gamma STEP_GAMMA]
[--cosa-tmax COSA_TMAX] [--momentum M] [--wd W] [--output-dir OUTPUT_DIR]
[--resume RESUME] [--start-epoch N] [--cache-dataset] [--amp] [--tb] [--model MODEL]
PyTorch Classification Training
optional arguments:
-h, --help show this help message and exit
--data-path DATA_PATH
dataset
--device DEVICE device
-b BATCH_SIZE, --batch-size BATCH_SIZE
--epochs N number of total epochs to run
-j N, --workers N number of data loading workers (default: 16)
--lr LR initial learning rate
--opt OPT optimizer (sgd or adam)
--lrs LRS lr schedule (cosa(CosineAnnealingLR), step(StepLR)) or None
--step-size STEP_SIZE
step_size for StepLR
--step-gamma STEP_GAMMA
gamma for StepLR
--cosa-tmax COSA_TMAX
T_max for CosineAnnealingLR. If none, it will be set to epochs
--momentum M Momentum for SGD
--wd W, --weight-decay W
weight decay (default: 0)
--output-dir OUTPUT_DIR
path where to save
--resume RESUME resume from checkpoint
--start-epoch N start epoch
--cache-dataset Cache the datasets for quicker initialization. It also serializes the transforms
--amp Use AMP training
--tb Use TensorBoard to record logs
--model MODEL "plain", "feedback", or "stateful-synapse"
分别训练3个模型:
python -m spikingjelly.clock_driven.examples.rsnn_sequential_fmnist --data-path /raid/wfang/datasets/FashionMNIST --tb --device cuda:0 --amp --model plain
python -m spikingjelly.clock_driven.examples.rsnn_sequential_fmnist --data-path /raid/wfang/datasets/FashionMNIST --tb --device cuda:1 --amp --model feedback
python -m spikingjelly.clock_driven.examples.rsnn_sequential_fmnist --data-path /raid/wfang/datasets/FashionMNIST --tb --device cuda:2 --amp --model stateful-synapse
训练集损失为:
训练集正确率为:
测试集正确率为:
可以发现,feedback
和 stateful-synapse
的性能都高于 plain
,表明自连接和有状态突触都有助于提升网络的记忆能力。
- 1
Yin B, Corradi F, Bohté S M. Effective and efficient computation with multiple-timescale spiking recurrent neural networks[C]//International Conference on Neuromorphic Systems 2020. 2020: 1-8.
- 2
Diehl P U, Cook M. Unsupervised learning of digit recognition using spike-timing-dependent plasticity[J]. Frontiers in computational neuroscience, 2015, 9: 99.
- 3
Fang H, Shrestha A, Zhao Z, et al. Exploiting Neuron and Synapse Filter Dynamics in Spatial Temporal Learning of Deep Spiking Neural Network[J].
